Our 10 micro SDXC to 2.5" SSD is RAID.

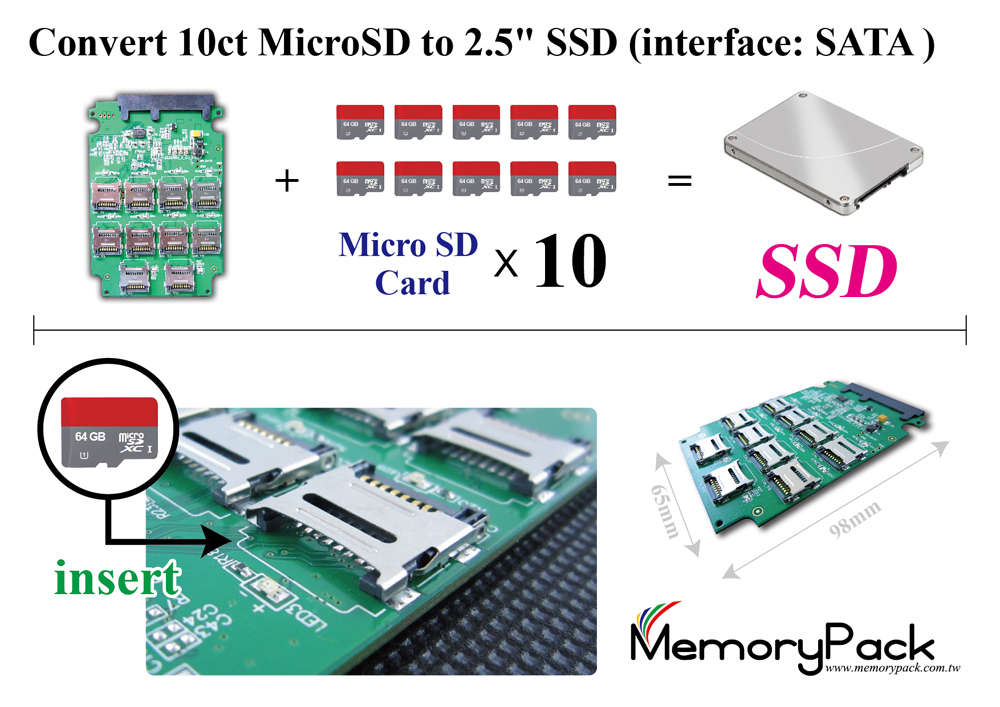

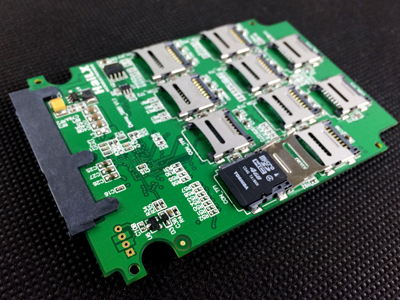

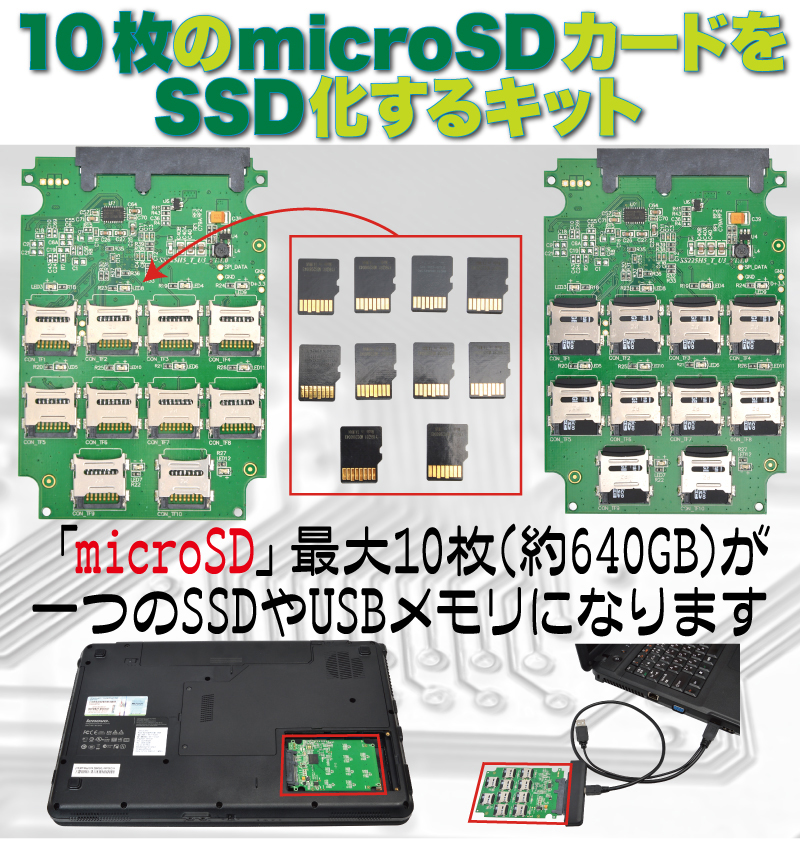

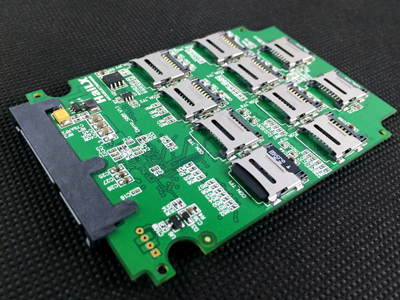

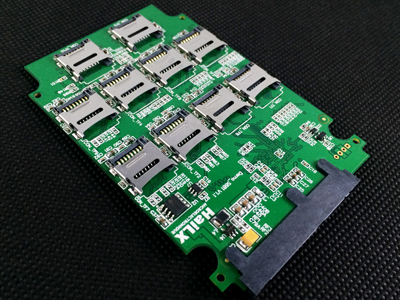

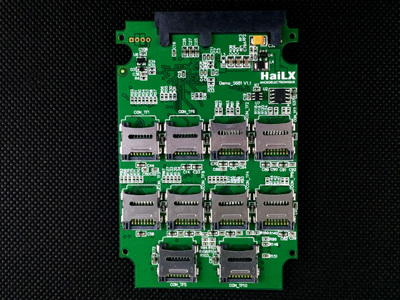

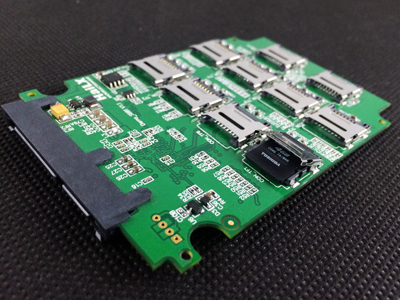

Model Number. MPK-10TF25SSD (10 micro SDXC 2.5'' to SSD) memorypack ssd converter 10 microSD to SSD enclosure

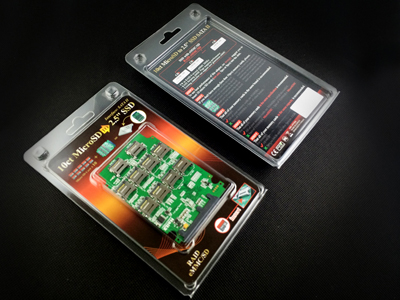

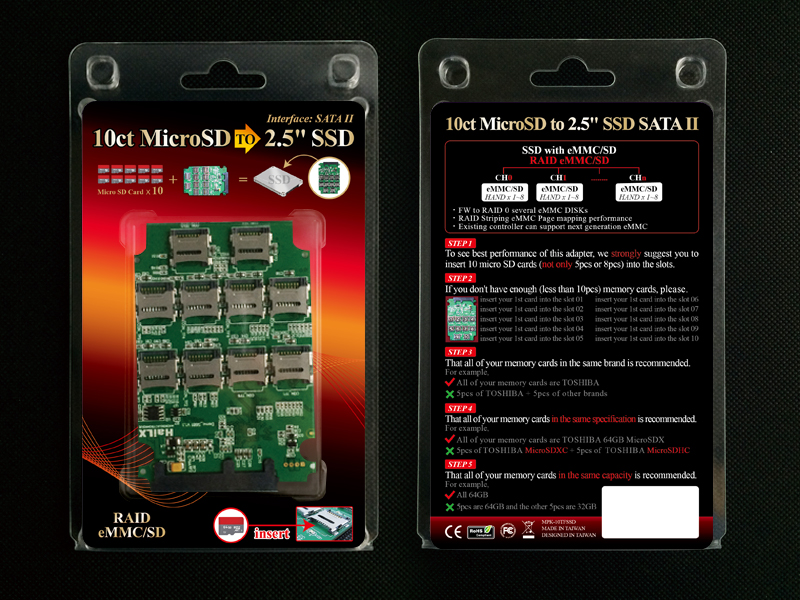

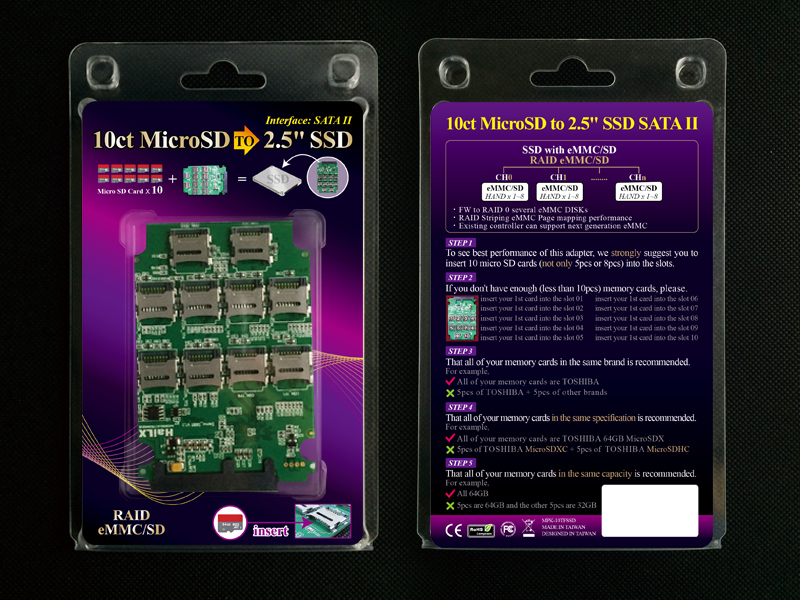

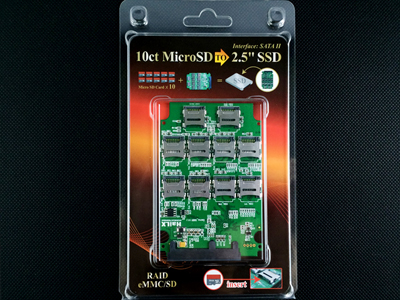

Our 10ct microSD to 2.5" SSD adapter with retail packaging 1

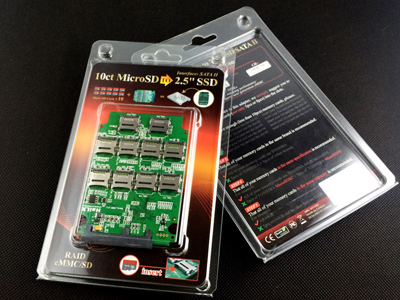

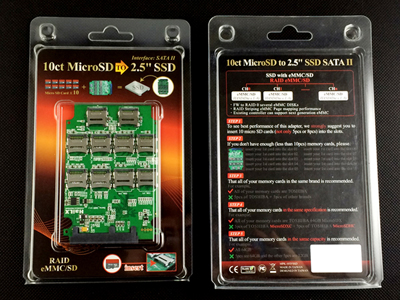

Our 10ct microSD to 2.5" SSD adapter with retail packaging 2
Details about the carton	Retail packaging 1 & 2 Minimum order quantity required =1 carton = 200pcs = 42 x 27 x 78 cm = 3.13 cubic feet = 20 KGS

Manual

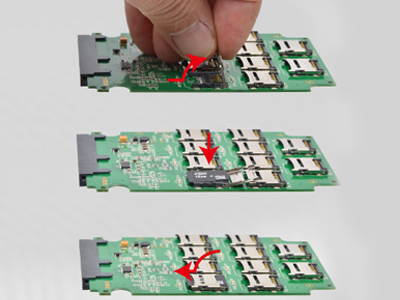

(Step 1) To see best performance of this adapter, we strongly suggest you to insert 10 micro SD cards (not only 5pcs or 8pcs) into the slot.

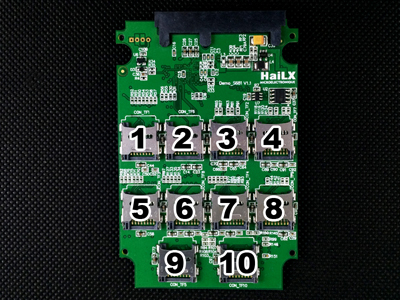

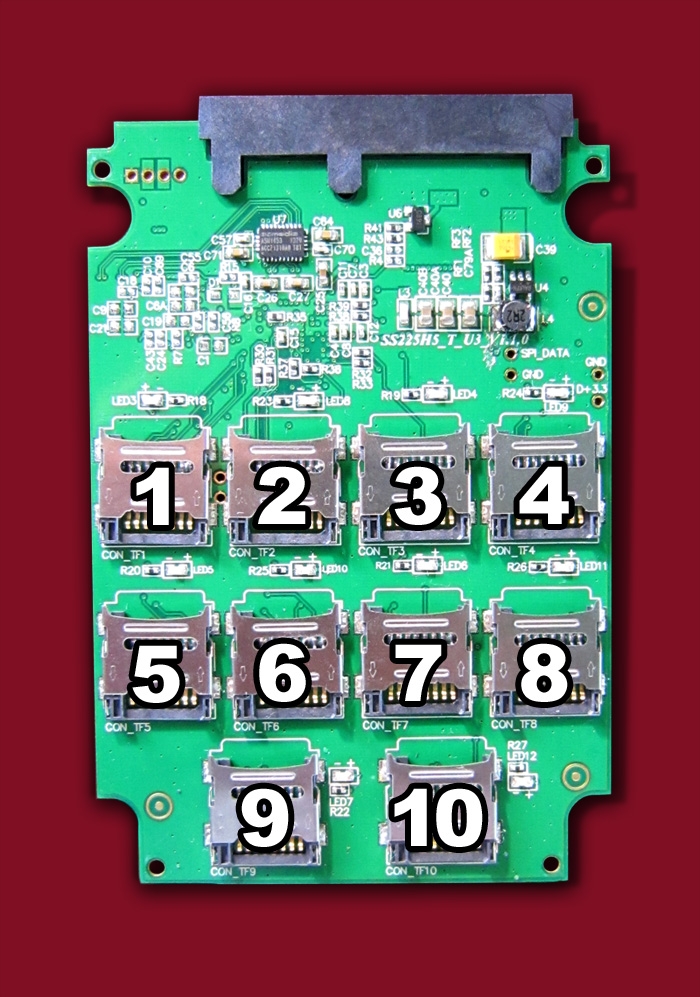

(Step 2 ) If you don't have enough (less than 10pcs) of memory cards, please

insert your 1st card into the slot 1

insert your 2nd card into the slot 2

insert your 3rd card into the slot 3

insert your 4th card into the slot 4

insert your 5th card into the slot 5

insert your 6th card into the slot 6

insert your 7th card into the slot 7

insert your 8th card into the slot 8

insert your 9th card into the slot 9

insert your 10th card into the slot 10

(Step 3 ) That all of your memory cards in the same brand is recommended.

For example,

All of your memory cards are Sandisk (OK)

5pcs of Kingston + 5pcs of Sandisk (We don't suggest)

(Step 4 )That all of your memory cards in the same specification is recommended.

For example,

All of your memory cards are Sandisk 64GB MicroSDX (OK)

5pcs of Sandisk MicroSDXC + 5pcs of Sandisk MicroSDHC (We don't suggest)

(Step 5 )That all of your memory cards in the same capacity is recommended.

All 64GB(OK)

5pcs are 64GB and the other 5pcs are 32GB(We don't suggest)

SSD converter (10ct micro sd to 2.5" SSD SATA II)

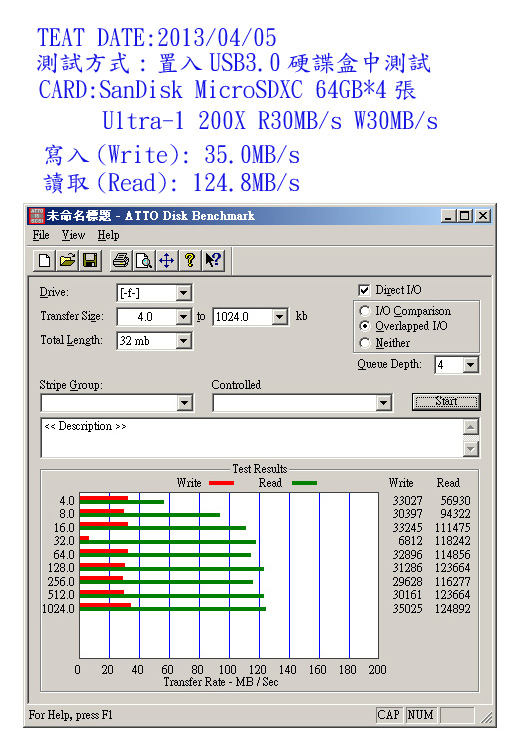

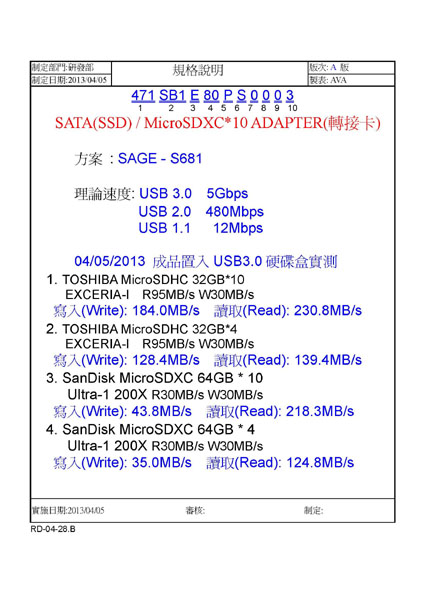

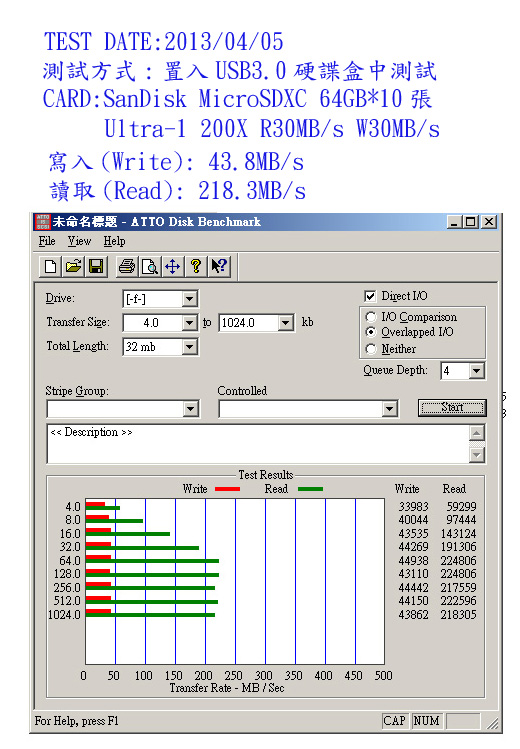

Tested by 4pcs of Sandisk MicroSDXC 64GB Ultra-1	Tested by 10pcs of Sandisk MicroSDXC 64GB Ultra-1

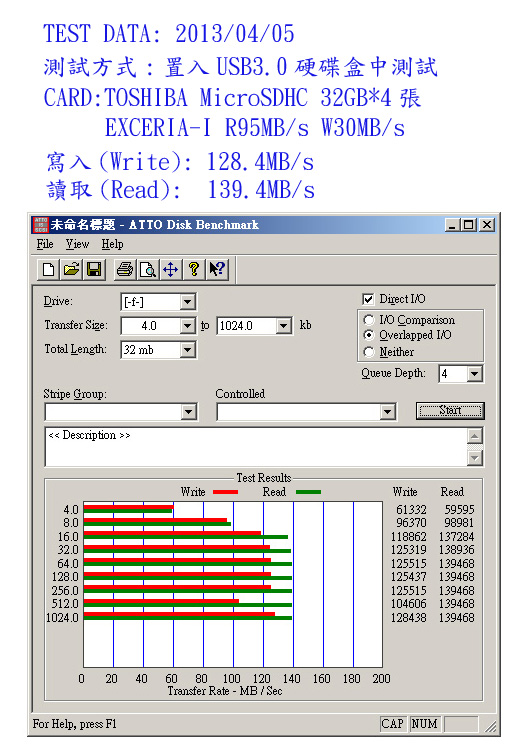

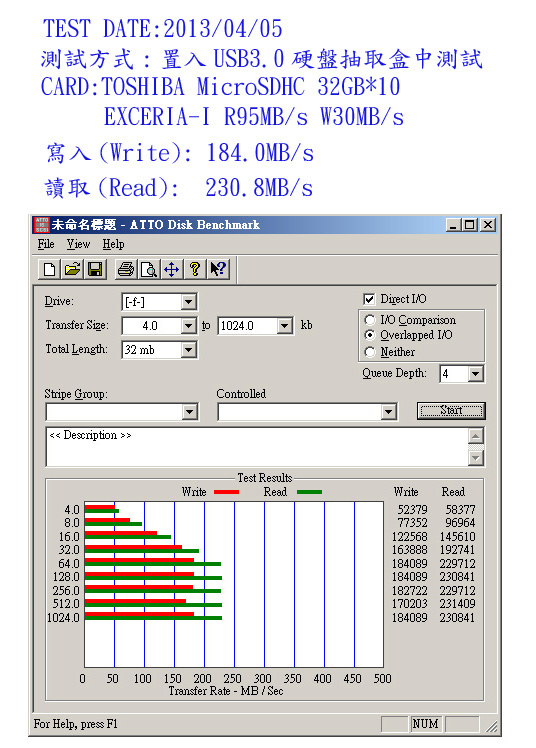

Tested by 4pcs of Toshiba MicroSDHC 32GB Exceria-I	Tested by 10pcs of Toshiba MicroSDHC 32GB Exceria-I

SATA-I = 1.5Gbps = 180MB/s

SATA-II = 3.0Gbps = 375MB/s

SATA-III = 6.0Gbps = 750MB/s

Details about the carton

(1) each piece packed by one poly bag

1 carton = 200pcs = 472 x 292 x 120 mm = 0.584 cubic feet = 7.0 KGS

標準包裝 = 200PCS/ 箱 4.8KG 7.0KG 0.584 才

每 PCS 置入汽泡袋 ,5 袋放入一紙坑 每箱 40 坑 =200PCS

外箱尺寸 =472 * 292 * 120mm = 0.584 才 裝

(2) packed by plastic clamshell box

1 carton = 200pcs = 42 x 27 x 78 cm = 3.13 cubic feet = 20 KGS

什麼是RAID

RAID 0 跟 RAID 1 都是將二顆硬碟組合成一顆硬碟,但結果是不同的

假設有a b硬碟都為20G
RAID 0 的結果為 在系統內看到一顆硬碟容量為 20+20=40G
RAID 0 可以將二個硬碟容量加總,資料寫入時是一部分寫入第一顆硬碟,一部份寫入第二顆硬碟,優點是寫入跟讀取速度增加,但缺點是沒有容錯功能.一旦其中一顆硬碟損壞,將造成資料的損壞.

RAID 1 的結果為 在系統內看到一顆硬碟容量為 20+20=20G (Mirror鏡射)
RAID 1 雖然也是將a b硬碟組合成一顆硬碟,但是它是將b硬碟作成a硬碟的鏡射碟.也就是說資料在寫入a硬碟時同時也寫入了一份複本在b硬碟,優點是資料在存取時同時有一份是備分檔,缺點是會浪費一顆硬碟，因為二顆硬碟是存放著相同的資料。

ssd converter micro sd memory card reader adapter sata 471sb1e80ps0003

10 microSD 轉 2.5" SSD轉接卡
